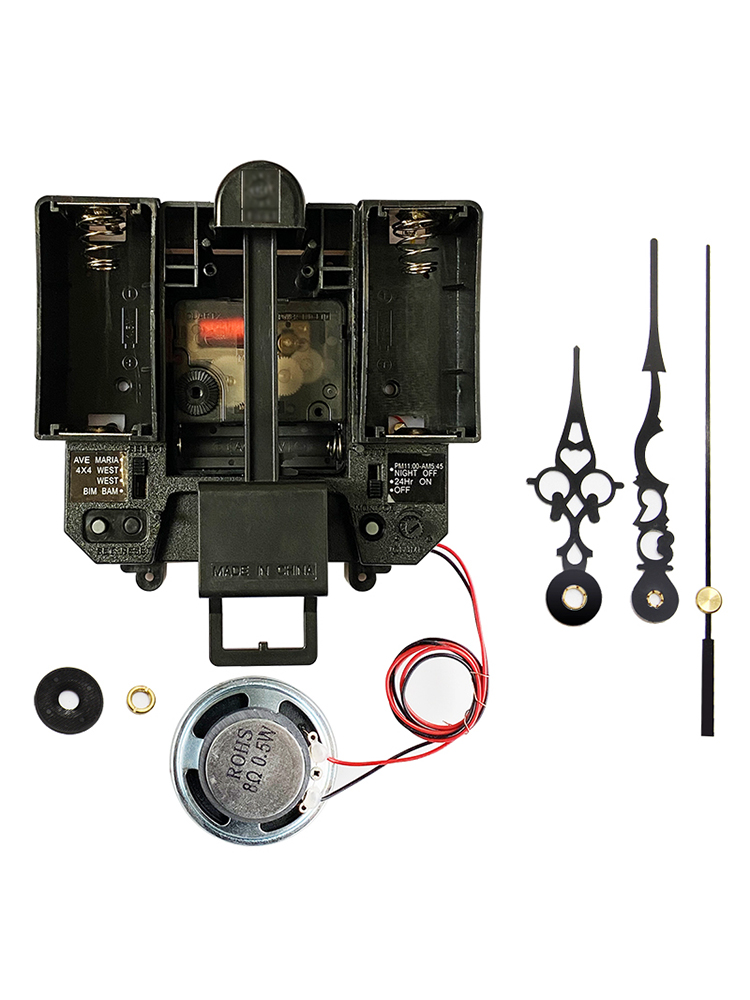

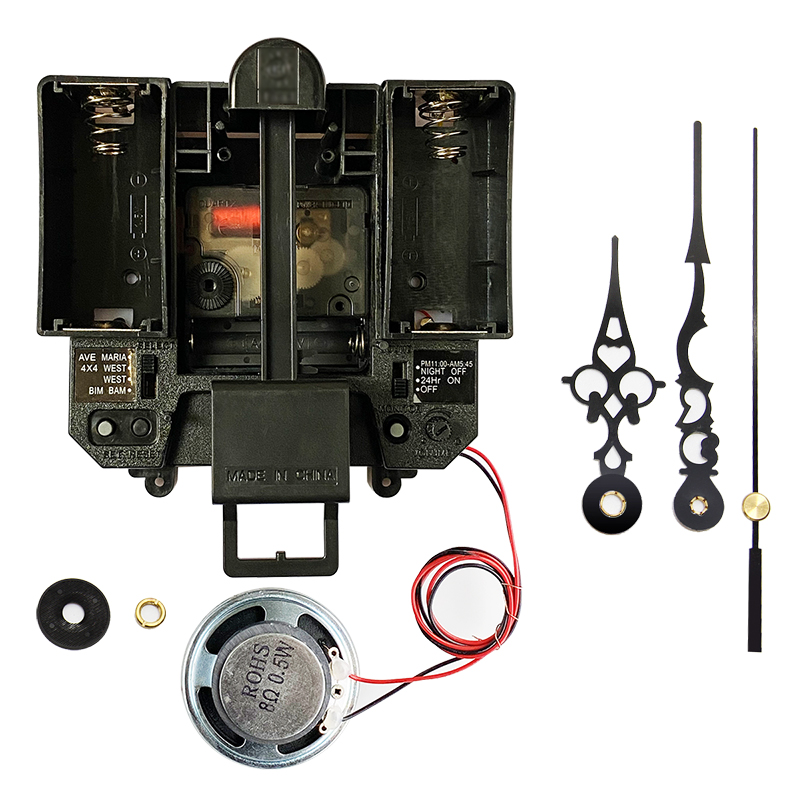

Grandfather Clock Parts Pendulum Drive Support Weight Within1200g Trigger Mechanism With Music Chime Box Hands DIY Accessory

Grandfather Clock Parts Pendulum Drive Support Weight Within1200g Trigger Mechanism With Music Chime Box Hands DIY Accessory

£56.99 GBP
£44.82 GBP £56.99 GBP
Sale Sold out
Taxes included.
Sheet Size


Brand:Power


Name: Quartz trigger movements with Music Chime Box&Pendulum

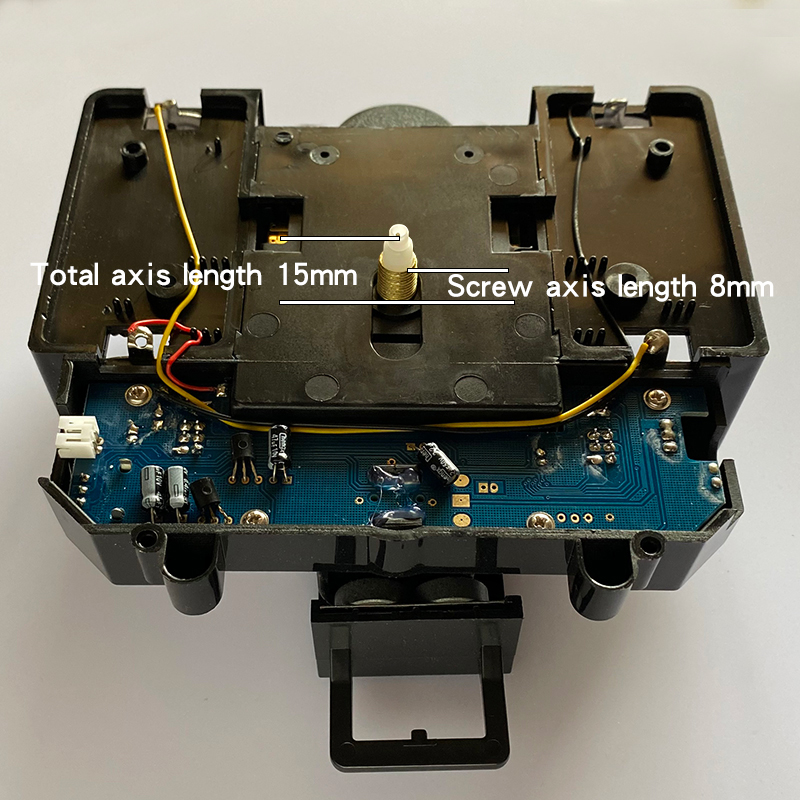

Size:Case Width135mm*Height 145mm*Thickness 50mm,Total axis length 12mm&15mm&22mm

Screw axis length 5mm&8mm&13mm

Movement case material: Plastic

Parts within movement material: Copper wire and Plastic

Clock hand Material: Aluminum

Dial Fixation: Centre Screw

Second hand motion: Sweep

Accuracy

Within ±30seconds deviation each month


(in normal temperature)

Battery: 1.5V Carbon-zinc batteries only,not included.

Please DO NOT USE Alkaline battery,Rechargeable


batteries,they will damage the movement.

Movement Net Weight: 260g

Place of Origin: GuangDong China (Mainland)

Packing: Simple and Safe packing

Parts: Horn and Clock hands

Characteristic: Mute move with Music Chime,

                  Pendulum Drive Units Can Support Pendulum Weight within 1200g

Used for: Repair original clock,DIY clock

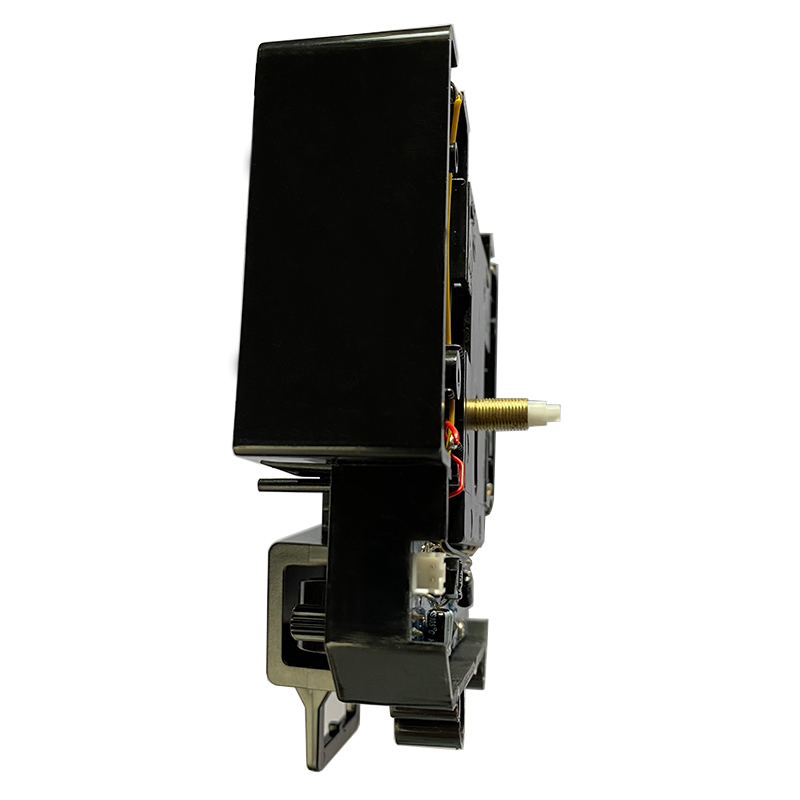

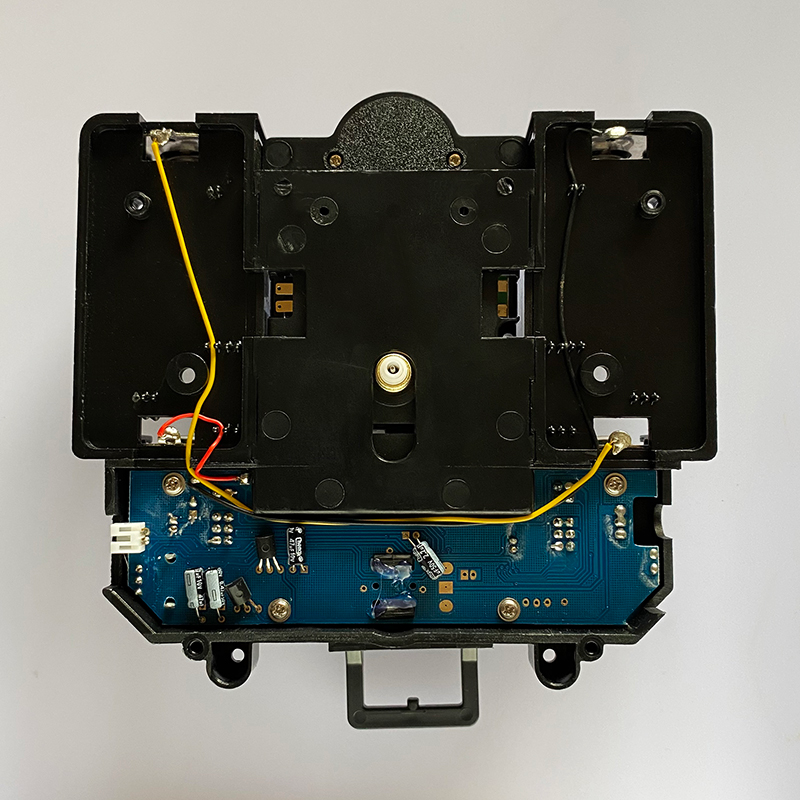

Product Photo


Three Size of Screw Axis Length Can Be Choosed,5mm/8mm/13mm







this item 13mm screw axis length out of stock,we have similar item have 13mm screw for choice,click below picture to go:



When you install Clock hand, just press down the clock hand to the axis vertically,do not need to twist the hand.

Check three hands,make sure they didn't meet each other,first place three hands all point 12 and then adjust wheel gear to current time,when adjust take note that three hands move fluently,if meet split it


(A) Set the Time and Modody
1.Remove the battery cover.
2.Insert the AA batteries into marking in the battery compartment according the direction of (+)and (-) poles,Then turn the Time setting knob in the clockwise direction to the proper time.
3.Insert 2pcs A size batteries into the music box battery holder according the direction of (+)and (-) poles,Then press the "RESET" button.
4.The first chime/strike after the battery inserted is 6:00AM,it will strike 6 sounds,Press 4 times "SET" button continuously.(it means the chime for 7/8/9/10 o'clock).You will not hear the sound at this period,but actually the clock already finished the chime for 10 o'clock now.
5.Afterward the movement will working self-motion,when time run to 11 o'clock,the strike(chime) will be correct.
6.If it has wrong step during above operation,just re-press "RESET" button,and re-press "SET"button to adjust.
7.For each reput or change batteries it need to set the step 3.

(B)Melody Function

a)MONITOR
To demonstrate the hourly sound select the melody by e) button and press the "MONITOR button.

b)VOLUME:Rotary volum

c)SET:Chime Time Setting Button
After press one time"SET"button,the chime time will onward one hour,but after press one time"SET",The 4x4 mode will not work correctly during the first hour after time is set.However,after that,it works correctly.
(Such as now is 10:25,the chime only will working on 11:00,it can not working during 10:25-10:59 this period)

d)RESET:CHIME TIME RE-SETTING BUTTON
After press"RESET"button,the chime time will automatism set to AM 5:00,when the minute hand run to next 00 o'clock,it will spring the chime function,then it will play chime and striking when AM 6:00.

e)SELECT:Melody select
-AVE MARIA :Ave Maria + Striking at 00 min.
-4x4 WESTMINSTER:Westminster + Striking at 00 min; 1/4,2/4,3/4 Westminster at 15,30 and 45 min respectively.
-WESTMINSTER:Westminster + Striking at 00 min.
-BIM BAM:Bim Bam at 00 min.
(e.g.:at 1 o'clock,1 strike of Bim Bam;at 2 o'clock,2 strikes of Bim Bam,ect.)

f)SOUND:Sound ON/OFF select
-Night off:Night shut off mode,Sound turn-off from 11:00p.m. to 5:45 a.m. automatically.
-24 Hr ON:24 hours ,sound turn-on.
-OFF:Sound off mode


(Note:The clock will switch off automatically from 10:00 PM to 5:59AM if the strike is set correctly.)

 C)VOLUME:Rotary volum




Instruction for installation

This under current equipment fit 1.5V Carbon-zinc battery Only,Please Do not use high current batteries,rechargeable batteries,they will damage the movement.
As we know,batteries has many limits on air transportation,in order to make shipping more smoothly,batteries didn't  included in our package
When you install Clock hand, just press down the clock hand to the axis vertically,do not need to twist the hand.
Check three hands,make sure they didn't meet each other,first place three hands all point 12 and then adjust wheel gear to current time,when adjust take note that three hands move fluently,if meet split it
Power is one of the best quartz clock movements in the world,it move super mutekeep better time andrequire less maintenance,when  you use correct battery and install clock hand correctly,you will be very pleased with it's work
Retail packing
Movement is well wrapped in bubble wrap and hands are packed in a sturdy plastic box (short length of rectangular electrical conduit) both inside a padded envelope.
